Nucleo · NLSW-2520
The Wall Becomes the Canvas
A 25×20 mm RGBWW silicone wall washer with DMX512 control: saturated colour, clean white, and scenes you can program and recall.
One Wall, Many Moods
A fixed-white wash looks the same at noon and at midnight. The NLSW-2520 does not have to. Mounted along the base or top of a wall, it paints the surface with any colour you program, then returns to a clean warm or cool white when the room needs to be simply lit.
Under the silicone lens sit five independent LED channels, controlled over DMX512 like any professional stage or hospitality fixture. The flexible, IP67 body follows curves and works outdoors, so the same system can run a hotel lobby, a banquet wall and an exterior facade.
Why five channels beat three
RGB-only strips make white by mixing all three colours, which often leaves a tint. Dedicated warm and cool white channels give clean whites and a tunable range, while the RGB channels handle the colour.
Built for Programmable Light
Five Independent Channels
Red, green, blue, warm white and cool white are driven separately, so one strip delivers saturated colour and clean white without a colour cast.
DMX512 Control
Addressable from standard DMX consoles, Art-Net bridges and decoders, so scenes, cues and sweeps are programmed rather than remote-controlled.
Washes, Not Dots
A 25 × 20 mm silicone body with a diffusing lens spreads 36 LED/m into a continuous band of colour on the wall.
3D Bending Silicone
Flexes sideways, up and down, and twists to follow curved walls, arches, columns and stair edges.
IP67 Protection
Dust-tight and rated for temporary immersion, so a single product covers lobbies, terraces and exterior facades.
24 W/m, 24V DC
Low-voltage supply with predictable loading: 120 W for a 5 m reel.
Tunable White 2700K–6500K
Blend the warm and cool white channels for any white between warm and cool, matched to the architecture.
Zone-Ready
Split a long wall into DMX zones and run them as one wash or as independent sweeps.
Test colour on the real finish
Coloured light shifts with paint, stone and texture. Mock up a short run on the actual wall, preview your key scenes, and then fix the DMX zones and addressing before the full install.
Where It Works Best
Hotel Lobbies & Corridors
Colour scenes that shift from welcome warm white to evening accent.
Banquet & Event Halls
Wall colour matched to the event theme and recalled by cue.

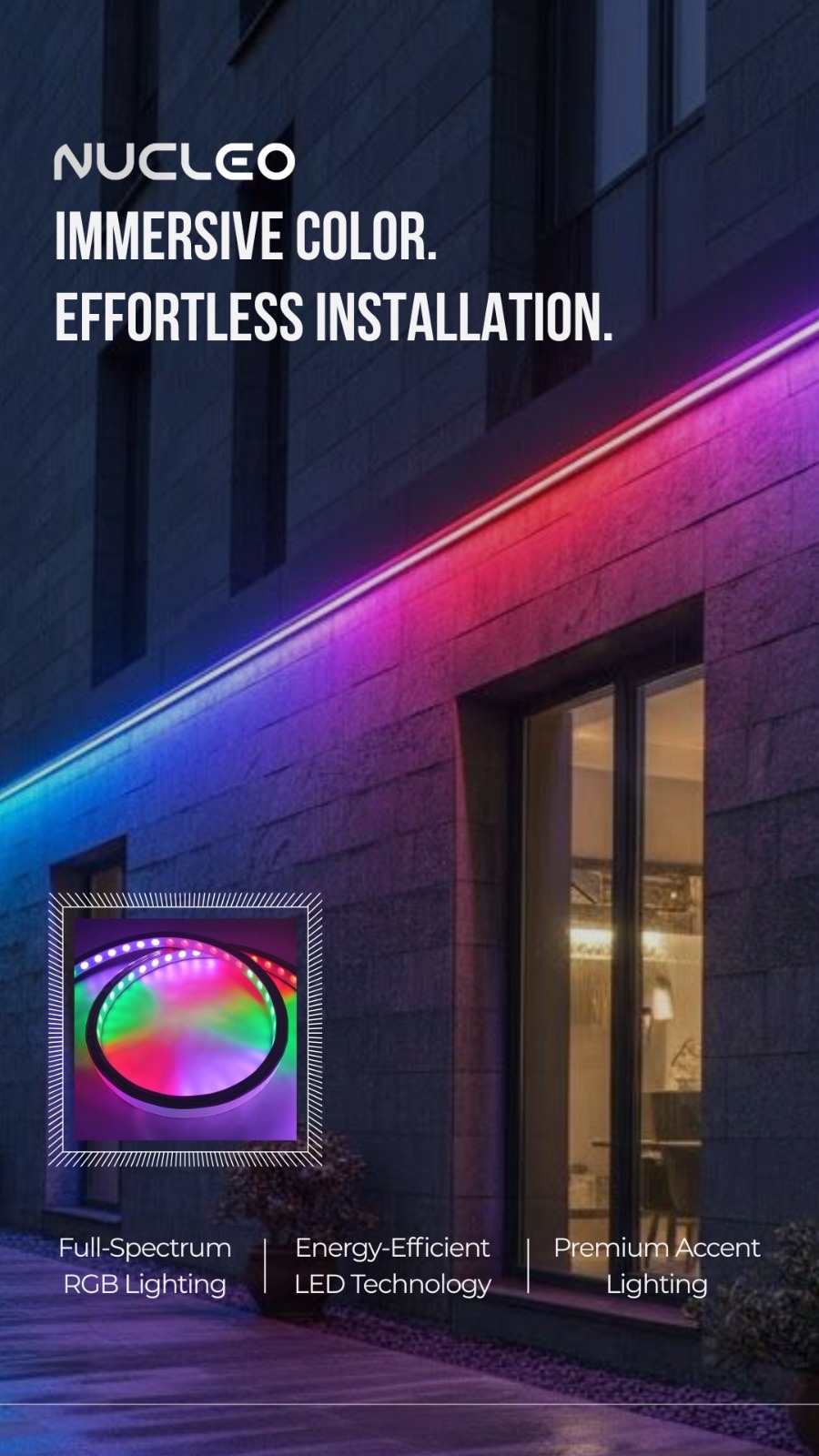

Building Facades
Programmable exterior colour for festivals, brand colours and national days.
Restaurants & Lounges
Mood walls that change through the service.
Retail Brand Walls
Brand colour on a feature wall, with a neutral white option for daytime.
Stage & Studio Backdrops
Cyclorama-style wall colour for sets and broadcast corners.
Curved Atrium Walls
Continuous wash around soft geometry where rigid washers cannot follow.
Pillars & Columns
Colour wrapped around round or oval columns.
Clubs & Entertainment Venues
Synchronised movement with music or show control.
Temples & Heritage Facades
Warm white for daily use and colour for festivals, on one install.
Technical Details
| Model | NLSW-2520 |
| Body size | 25 × 20 mm silicone |
| Voltage | 24V DC |
| Power | 24 W/m |
| LED density | 36 LED/m |
| LED type | RGBWW, 5 channel |
| Control | DMX512 |
| Protection | IP67 |
| Bending | 3D |
| Reel length | 5 m |
| Driver sizing | 120 W per reel — use 150 W 24V DMX driver |
Specification Questions, Answered
It has five LED channels: red, green, blue, warm white and cool white. Mixing them gives a wide range of colours and any white between warm and cool. Using the dedicated white channels gives cleaner white than mixing RGB.
DMX512 is the standard control protocol in theatres, hotels and venues. It lets a controller address each zone for colour, brightness and timing, so you can program sweeps, sync several walls and recall saved scenes. It is more precise than an RF remote for projects with multiple zones.
A 24V DMX decoder or DMX-enabled driver sized for the load, plus a DMX source such as a console, Art-Net bridge or lighting software. The strip uses five channels per address. Confirm channel mode and power rating with the decoder before ordering.
The strip draws 24 W/m, so a 5 m reel is 120 W. Use a 24V supply rated at least 150 W per reel, which leaves headroom. For multiple reels, total the wattage and keep about 20% spare capacity.
Yes. The silicone body is IP67 rated. Keep the decoder and driver in a dry, ventilated enclosure, and seal cut ends and joints with proper end caps and waterproof connections.
Yes. With only the white channels active the strip shows a clean white without a colour cast. Blend warm and cool white to tune between roughly 2700K and 6500K.
The NLSW-1616 is a fixed-white washer with a smaller body, while the NLSW-2520 is a larger 25 × 20 mm RGBWW strip with DMX512 control. Choose the 1616 for a static white wash and the 2520 where colour or scene control is needed.
As a starting point, 100–200 mm for interiors, closer for a tighter gradient and further for a broader wash. Mock up a short run with the actual colours first, since coloured light looks different on each finish.
Planning a colour wall?
Tell us the wall length, zones and control system, and we will help with decoder, driver and layout.
