The Illuminator Behind
Every Starfield Ceiling.
A compact 18W light engine with a rotating twinkling wheel, app and remote control, driving up to 600 fiber strands from a single connection — sized for ceilings in the 400–500 point range.

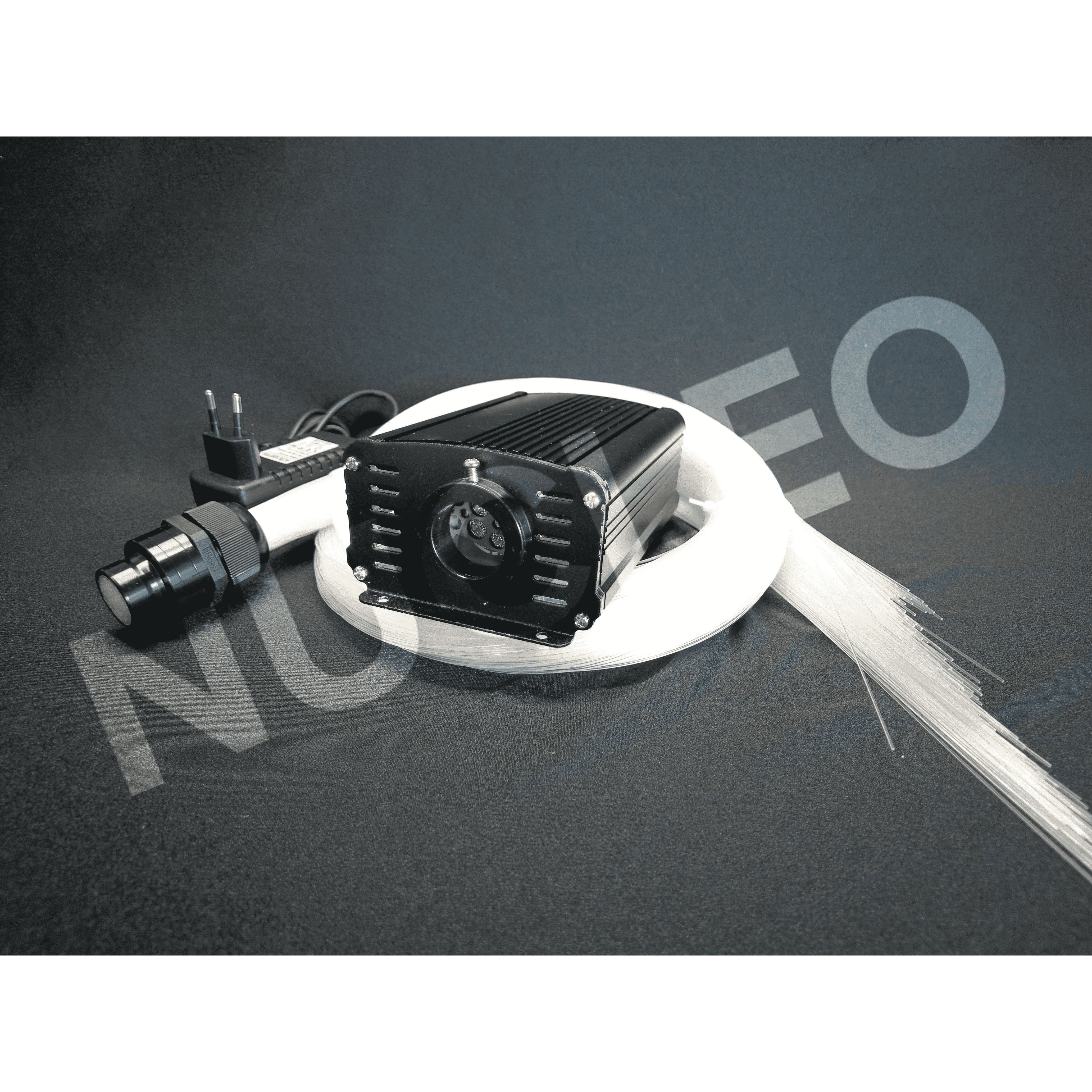

Fiber optic cable is passive — every point of light in a star ceiling originates from a single illuminator sitting outside the ceiling void. The Nucleo NLE-18 is the entry point into that system: an 18W LED source behind a rotating twinkling wheel, projecting light into up to 600 strands of 0.75mm fiber through a 16mm aperture. It is sized for the majority of residential and small commercial star ceilings, in the 400 to 500 point range.
Twinkling speed — and colour, on RGBW units — can be adjusted from a phone or a dedicated remote, whichever suits the installation.
Bluetooth App
Adjust twinkling speed and colour from a smartphone within Bluetooth range of the illuminator.
2.4G RF Remote
A dedicated handheld remote for direct control without needing a phone or app open.
Twinkling Wheel
A rotating filter disc varies colour and intensity as it spins, creating the signature shimmer effect.
A focused feature set built specifically around driving fiber optic point installations reliably.
Single Colour / RGBW LED Source
Available configured for a fixed white starfield or a full RGBW colour-changing effect.
Twinkling Wheel
A rotating coloured filter disc produces the characteristic shimmering star effect rather than static points.
18W Output
Sufficient output to evenly light up to 600 strands of 0.75mm fiber from a single illuminator body.
12V / 220V Input
Flexible input configuration to suit different installation and power supply arrangements.
Bluetooth App Support
Control twinkling speed and colour directly from a smartphone app.
2.4G RF Remote Included
A dedicated remote for direct control without relying on a paired device.
16mm Aperture
Sized to accept standard Nucleo fiber bundles for straightforward on-site termination.
50,000 Hour LED Life
Rated LED lifespan typically outlasts the fiber cable and other installation components.
| Parameter | Specification |
|---|---|
| Model | NLE-18 |
| LED Type | Single Colour / RGBW |
| Input Voltage | 12V / 220V |
| Wattage | 18W |
| Effect | Twinkling Wheel with Speed Control |
| Control | Bluetooth App + 2.4G Remote |
| Aperture | 16mm |
| Strand Capacity | Up to 600 strands of 0.75mm fiber |
| Ideal For | Ceilings, up to 400–500 points |
| Rated Life | 50,000 hours |
Sized for the point counts typical of most residential and boutique commercial star ceiling projects.
Bedroom Star Ceilings
The standard illuminator size for residential starfield ceilings in the 400–500 point range.
Home Theatres
Creates an ambient starfield above seating areas without heat or wiring at the ceiling surface.
Spa & Wellness Rooms
A calm, twinkling ceiling effect suited to treatment and relaxation spaces.
Boutique Retail Displays
Compact illuminator size fits easily above small feature ceilings in retail fitouts.
Guest Rooms & Suites
Hospitality rooms use the NLE-18 for a signature ceiling feature within a standard point budget.
Feature Alcoves & Niches
Smaller architectural features that need a dedicated illuminator rather than sharing a larger unit.
Demonstration & Training Rooms
Compact, easy-to-control unit suited to showroom and training environments demonstrating fiber lighting.
Residential Feature Ceilings
Living rooms and study ceilings using a moderate point count as an architectural accent.
Enquire About the NLE-18 Fiber Optic Light Engine
Our team helps you match illuminator capacity to your target point count and fiber selection.
