One Illuminator.
Up to 100 Ceiling Points.

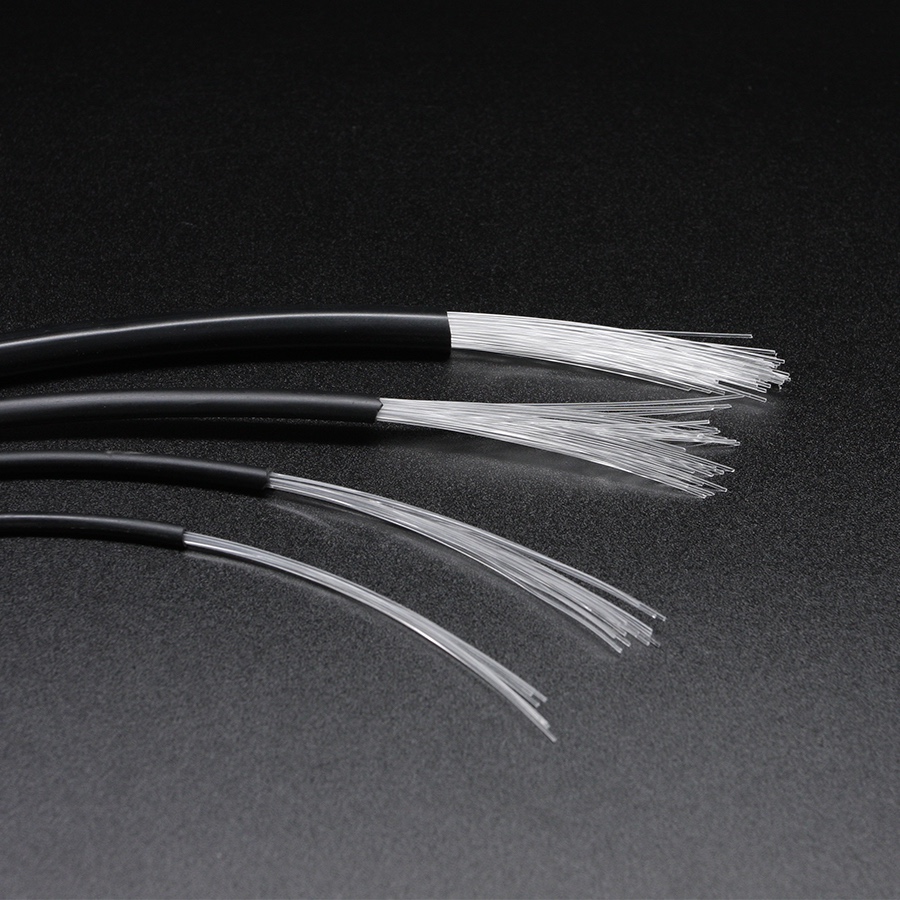

NL-MEOF bundles 3 to 100 individual 0.75mm end glow strands inside a single black PVC jacket — one tidy run from the illuminator, splitting into a full field of star points once it reaches the ceiling void.
A dense starfield needs dozens or hundreds of individual fiber points, but running that many loose strands from the illuminator would be unworkable on site. Nucleo's NL-MEOF series bundles up to 100 individual 0.75mm PMMA strands inside one protective black jacket for the length of the run — from the illuminator to the ceiling void — where the bundle is opened and each strand is separated and routed to its own point. One illuminator connection, one trunk cable, a full field of stars.
Choose bundle size to match your target point count, or combine multiple bundles across illuminator ports for larger ceilings.
3
7
14
25
42
50
75
84
100
Everything about this product is designed around simplifying installation of large point counts, not around changing how each point glows.
Up to 100 Strands, One Jacket
Nine bundle sizes from 3 to 100 strands, each strand a full 0.75mm end glow PMMA fiber.
Black PVC Trunk Jacket
Protects the entire bundle along the run from the illuminator to the ceiling distribution point.
Splits Into Individual Points
Strands are separated and routed individually once the bundle reaches the ceiling void, each terminating at its own star point.
Simplified Site Installation
One trunk cable to pull and secure instead of dozens or hundreds of loose strands, cutting installation time significantly.
Identical Point-Glow Quality
Each strand performs exactly like a single NL-EOF end glow fiber once separated — bundling doesn't compromise brightness.
Combinable Across Illuminator Ports
Multiple bundles can feed from separate illuminator ports for larger ceilings or zoned control.
Sized to Illuminator Capacity
Bundle strand counts align with Nucleo NLE illuminator capacities, from a few hundred to over a thousand strands.
Stocked & Dispatched from Mumbai
Standard bundle sizes ship within 24–48 hours; project volumes are coordinated against your installation schedule.
| Model | Strand Count | Outer Dia. | Length / Roll | Material | Colour |
|---|---|---|---|---|---|
| NL-MEOF-3 | 3 × 0.75mm | 3mm | 1350m | PMMA | Black |
| NL-MEOF-7 | 7 × 0.75mm | 4mm | 900m | PMMA | Black |
| NL-MEOF-14 | 14 × 0.75mm | 5mm | 450m | PMMA | Black |
| NL-MEOF-25 | 25 × 0.75mm | 6mm | 300m | PMMA | Black |
| NL-MEOF-42 | 42 × 0.75mm | 8.5mm | 250m | PMMA | Black |
| NL-MEOF-50 | 50 × 0.75mm | 9mm | 250m | PMMA | Black |
| NL-MEOF-75 | 75 × 0.75mm | 10.5mm | 200m | PMMA | Black |
| NL-MEOF-84 | 84 × 0.75mm | 11.5mm | 150m | PMMA | Black |
| NL-MEOF-100 | 100 × 0.75mm | 12mm | 100m | PMMA | Black |
Any project with a large point count where installing individual strands one at a time isn't practical.
Large-Scale Star Ceilings
Bedrooms, home theatres and feature ceilings needing hundreds of points from a single illuminator run.
Hotel & Resort Feature Ceilings
Lobbies, banquet halls and suites specify high point counts for dramatic architectural ceiling effects.
Domes & Religious Ceilings
Large domed and ceremonial ceilings use dense bundles to recreate a full constellation effect.
Spas & Wellness Ceilings
Treatment rooms and relaxation areas use bundled fiber for a calming starfield without heat or wiring overhead.
Home Theatres & Cinemas
Dense point fields recreate a night-sky ceiling for private and commercial cinema spaces.
Museums & Planetariums
Large-format point installations for exhibition ceilings and astronomy-themed displays.
Luxury Residential Ceilings
Premium bedrooms and living spaces specify high point counts for a bespoke starfield feature.
Commercial Feature Installations
Malls, showrooms and corporate lobbies use bundled runs to simplify wiring for large decorative ceilings.
Enquire About Multi-String End Glow Fiber Optic Cable
Our team helps you plan strand count, bundle sizing and illuminator capacity for large-scale star ceilings.
