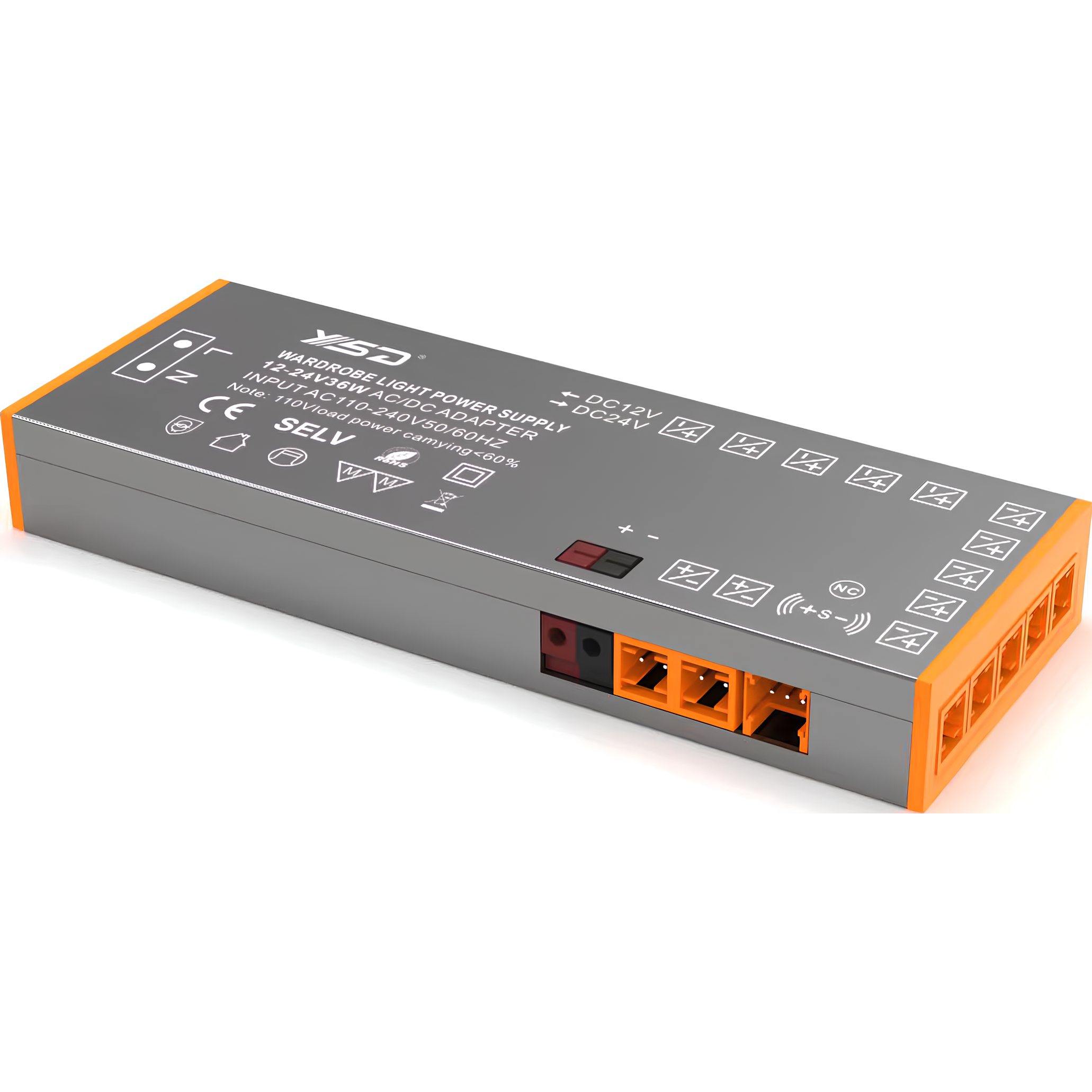

Most wardrobe and cabinet lighting jobs don't fail at the LED fixture — they fail at the wiring behind it. A separate transformer for every shelf light, a tangle of connectors inside the top box, a visible driver screwed to the back panel. The Nucleo cabinet & wardrobe LED power supply solves this at the source: one 18mm-slim unit with 12 independent output ports replaces up to 12 individual transformers, feeding every shelf, rail and drawer light from a single point that the carpenter mounts once and never has to revisit.
12
Output Ports
One driver replaces up to 12 separate transformers
18
mm Slim
Fits inside a top box, plinth or false back
12–24V
DC Output
Covers 12V and 24V LED fixtures
SELV
Safety Rated
Safe for furniture people open and touch daily
⚙ Engineered for the Carpenter, Not Just the Electrician
Interior fit-outs rarely have room budgeted for a driver. At 18mm height, this power supply mounts flush behind a shutter, inside a top box or within a false-bottom drawer — no extra depth added to the carcass, no visible box, no compromise on the design brief.
All three models share the identical 18mm body height and 12-port layout — only total wattage and physical length scale up. Pick by adding your total connected LED wattage with roughly 20% headroom:
🔒 SELV — Built for Occupied Furniture
The output is SELV rated (Safety Extra Low Voltage) — 12–24V DC carries no shock risk under normal conditions, even where wiring sits behind a shelf someone opens daily. This is the safety class required for Class III luminaires used inside wardrobes, drawers and cabinets, and it means no additional isolation or protective enclosure is needed around the driver itself.
🔌
12 Independent Ports
Each port wires directly to one fixture — a fault on one shelf light never takes down the other 11.
📏
18mm Ultra-Slim
Thinner than most wardrobe shutters. No extra carcass depth needed to conceal the driver.
⚡
12–24V Selectable
One driver covers both 12V and 24V LED fixture standards — no separate SKU per voltage.
🌐
Universal 100–264V Input
Auto-ranging input covers India's 230V mains and 110V supplies — no voltage selector switch.
🛡️
SELV Safety Rated
Class III compliant output — safe for wardrobes, drawers and other occupied furniture spaces.
🔒
Overload & Short-Circuit Protection
Automatic protection and recovery keeps the other 11 ports live if one connection is disturbed.
🔇
Silent, Passive Cooling
No fan, no operating noise — appropriate for bedroom wardrobes and quiet interior spaces.
🧰
One-Point Installation
Wire once from a single mounted driver instead of routing 12 separate transformer feeds.
How many lights can one cabinet power supply actually run?
Up to 12 independent LED light points from a single unit — each of the 12 output ports feeds one shelf strip, hanging rail light, drawer light or spotlight directly. There's no shared bus and no splitter cable involved, so a fault or disconnection on one port never affects the other 11.
What's the difference between the 60W, 100W and 150W versions?
All three share the same 18mm body, 12–24V output and 12-port layout — only the total wattage and physical length change. 60W (166×50×18mm) suits a single wardrobe with light loads, 100W (196×50×18mm) covers a medium wardrobe or small modular kitchen run, and 150W (226×50×18mm) is sized for a large walk-in wardrobe or full cabinet suite. Choose by adding up your total connected LED wattage and leaving at least 20% headroom.
Will this actually fit inside a slim wardrobe top box or plinth?
Yes — at 18mm height it is thinner than most wardrobe shutters and MDF panels. It mounts flush inside a top box, behind a kick plate, or within a false-bottom drawer cavity without forcing the carpenter to build extra depth into the unit for the driver alone.
Is a 12–24V driver safe to install inside furniture that people touch and open daily?
Yes. The driver is SELV rated (Safety Extra Low Voltage), meaning its 12–24V DC output carries no shock risk under normal conditions even if the wiring is incidentally touched while reaching into a shelf or drawer. This is the safety class required for Class III luminaires used inside occupied furniture.
Can this run on Indian 230V mains without any converter or voltage selector?
Yes. Input is universal AC 100–264V, which auto-detects and covers India's 230V mains as well as 110V supplies used elsewhere. There's no manual switch to set — connect it directly to mains and it self-regulates the input range.
What LED fixtures can be connected to each port?
Any 12V or 24V LED strip, wardrobe bar light, cabinet puck light, drawer sensor light or rail spotlight can connect to a port, as long as the fixture's rated voltage matches the driver's selected output (12V or 24V) and the total load across all connected ports stays within the model's rated wattage.
Does Nucleo supply this driver for carpentry and interior projects across India?
Yes. Nucleo supplies the cabinet and wardrobe LED power supply pan-India — to interior contractors, modular furniture fabricators and carpentry workshops in Mumbai, Delhi, Bangalore, Hyderabad, Chennai, Pune and other cities, including project quantities and specification support.
