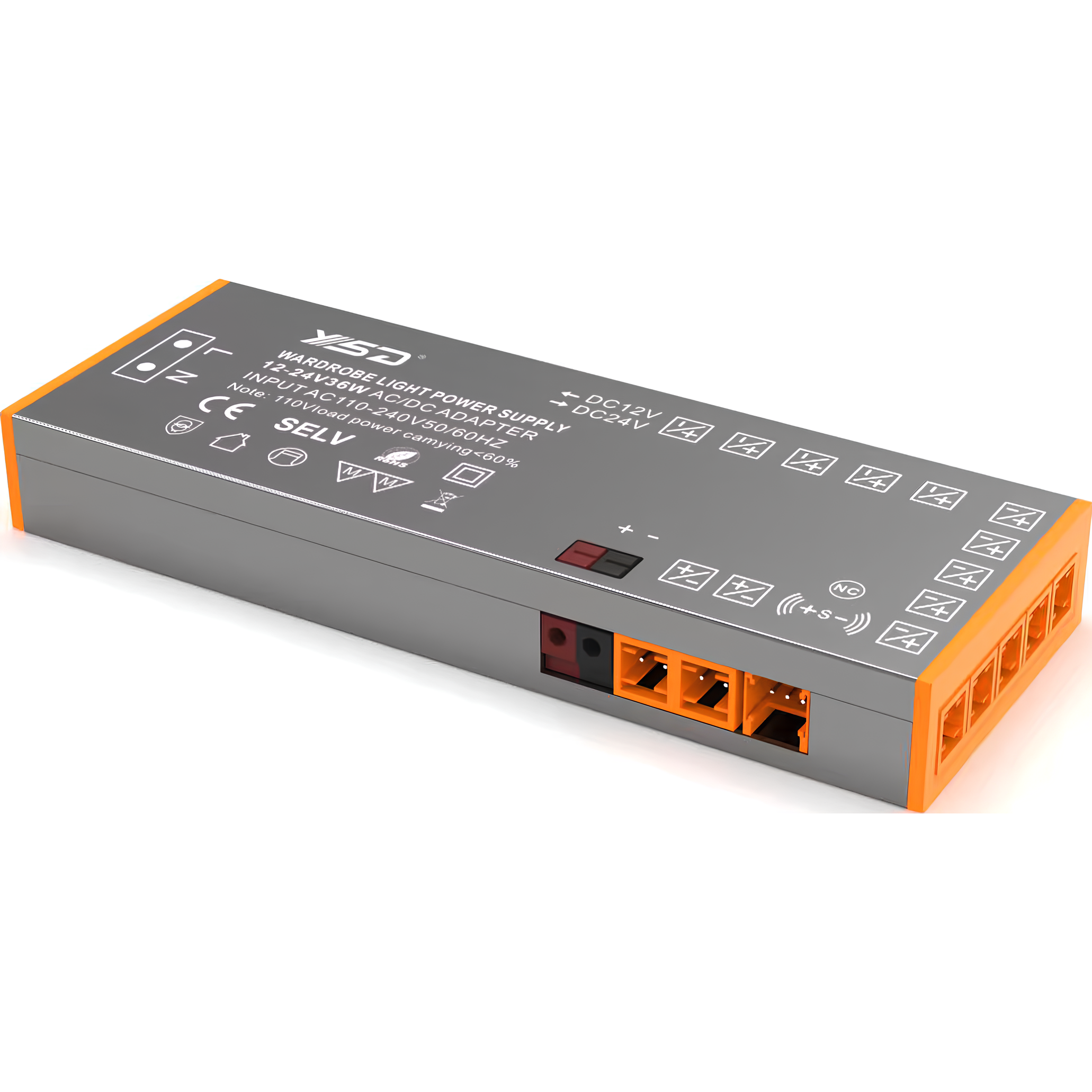

Walk into most fitted wardrobes with lighting and you'll find the same pattern behind the shutters: a small transformer taped or screwed in near every shelf light, loose leads running to the next one, and no single point anyone can service without opening multiple panels. It works, until one connector loosens or a carpenter needs to add a thirteenth point mid-project. The Nucleo cabinet & wardrobe LED power supply removes the pattern entirely — one 18mm-slim driver with 12 independently wired output ports stands in for every one of those separate transformers, mounted once and wired out from a single location.
12
Output Ports
One driver replaces up to 12 separate transformers
18
mm Slim
Fits inside a top box, plinth or false back
12–24V
DC Output
Covers 12V and 24V LED fixtures
SELV
Safety Rated
Safe for furniture people open and touch daily
🪚 Built Around the Carpenter's Constraints, Not the Electrician's
Fit-out drawings rarely allocate depth for a driver box. At 18mm, this power supply sits flush behind a shutter, inside a top box, or in a false-bottom drawer cavity — no added carcass depth, no visible enclosure, no redesign of the joinery to make room for it.
All three models share the identical 18mm body height and 12-port layout — only total wattage and physical length scale up with it. Add your total connected LED wattage plus roughly 20% headroom to choose:
🔒 SELV Output — One Less Thing to Worry About
Because the output is SELV rated (Safety Extra Low Voltage), the 12–24V DC leaving each port carries no shock risk under normal conditions, even where a lead sits behind a shelf someone opens and touches every day. This is the safety classification required for Class III luminaires inside occupied furniture, so no extra isolation enclosure is needed around the driver itself.
🔌
12 Independent Ports
Each port wires directly to one fixture — a fault on one shelf light never takes down the other 11.
📏
18mm Ultra-Slim Body
Thinner than most wardrobe shutters, so no extra carcass depth is needed to hide it.
⚡
12–24V Selectable Output
One driver covers both 12V and 24V LED fixture standards — no separate SKU per voltage.
🌐
Universal 100–264V Input
Auto-ranging input handles India's 230V mains and 110V supplies with no selector switch.
🛡️
SELV Safety Rated
Class III compliant output — appropriate for wardrobes, drawers and other occupied spaces.
🔧
Overload & Short-Circuit Protection
Automatic protection and recovery on each port keeps the remaining 11 live if one is disturbed.
🔇
Silent Passive Cooling
No fan and no operating noise — suited to bedroom wardrobes and quiet interior spaces.
🧰
One-Point Installation
Wire out from a single mounted driver instead of routing 12 separate transformer feeds.
Why use a 12-port driver instead of one small transformer per light?
A separate transformer per shelf or drawer light means a separate box, a separate mains tap and a separate point of failure for every fixture — multiplied across a full wardrobe, that's a dozen boxes hidden in a carcass with no room for them. One 12-port driver replaces all of that with a single mounted unit and 12 independent output leads, so the carpenter installs once instead of a dozen times.
If one port fails, do the other lights go out too?
No. Each of the 12 ports is wired independently from the driver, not looped through a shared bus. A disturbed connection, a shorted fixture or a disconnected plug on one port has no electrical effect on the other 11 — every shelf, rail and drawer light stays lit on its own circuit.
How do I choose between the 60W, 100W and 150W versions?
All three models share the same 18mm body height, 12–24V output range and 12-port layout — only total wattage and physical length change. Add up the wattage of every LED fixture you intend to connect, add roughly 20% headroom, and pick the model that covers that total: 60W (166×50×18mm) for a single wardrobe with light loads, 100W (196×50×18mm) for a medium wardrobe or short modular kitchen run, 150W (226×50×18mm) for a large walk-in wardrobe or a full cabinet suite.
Does an 18mm driver actually fit inside a standard top box or plinth?
Yes. At 18mm, the driver is thinner than most wardrobe shutters and carcass panels, so it sits flush inside a top box, behind a kick plate, or inside a false-bottom drawer without the carpenter having to build extra depth into the unit just to hide the power supply.
Is it safe to run 12–24V wiring inside furniture people open and touch every day?
Yes. The output is SELV rated (Safety Extra Low Voltage), which means the 12–24V DC carries no shock risk under normal conditions even if wiring is incidentally touched while reaching into a drawer or shelf. This is the safety classification required for Class III luminaires installed inside occupied furniture.
Will this work on Indian mains without a voltage converter?
Yes. The input is universal AC 100–264V and auto-ranging, which covers India's 230V mains directly along with 110V supplies used elsewhere. There's no manual voltage switch to set on site — connect it to mains and the driver self-regulates.
What kind of LED fixtures can connect to each output port?
Any 12V or 24V LED strip, wardrobe bar light, cabinet puck light, drawer sensor light or rail spotlight can connect to a port, provided the fixture's rated voltage matches the driver's selected output and the combined load across all 12 ports stays within the chosen model's rated wattage.
Does Nucleo supply this driver for carpentry and fit-out projects across India?
Yes. Nucleo supplies the cabinet and wardrobe LED power supply pan-India to interior contractors, modular furniture fabricators and carpentry workshops in Mumbai, Delhi, Bangalore, Hyderabad, Chennai, Pune and other cities, including project-quantity orders and specification support.
