What is the difference between honeycomb and standard neon flex?

The body size, installation method, LED strip compatibility, and electrical characteristics are identical between the honeycomb and standard 16×16mm profiles. The only difference is the diffuser face. A standard 16×16mm profile has a smooth, flat diffuser that produces a uniform, seamless glow with no visible pattern. The honeycomb variant has a hexagonal-patterned diffuser that creates a textured, patterned light effect — the individual honeycomb cells are visible as the diffuser glows. Choose standard for seamless architectural cove lighting; choose honeycomb when the texture of the light source is part of the design intent.

What LED strips are compatible with the 16×16mm honeycomb profile?

The honeycomb profile accepts the same LED strips as the standard 16×16mm silicone neon flex — any strip width that fits the internal channel. Single-colour (warm white, neutral white, cool white), tunable white CCT, RGB, and RGBWW strips can all be used. RGB and RGBWW strips are especially popular with the honeycomb diffuser because colour changes interact with the hexagonal texture to create a rich, layered visual effect.

Is the honeycomb neon flex installed the same way as standard neon flex?

Yes. The installation method is identical to any 16×16mm silicone neon flex — mount the profile in a channel, groove, or surface mount track; insert the LED strip; seal the ends; connect to a 24V driver. The honeycomb face simply faces outward. The Top Bending flexibility means it follows ceiling coves and curved wall reveals just as easily as the standard profile.

What roll length is the honeycomb neon flex supplied in?

The 16×16mm honeycomb silicone neon flex profile is supplied in 100-metre rolls. It is an empty channel — the LED strip is not included. You select and insert the LED strip of your choice based on the required light output, colour temperature, or colour capability. The profile can be cut to any required length on site at the LED strip cut intervals.

16×16mm Honeycomb Silicone Neon Flex Profile | Empty Channel | Textured Diffuser | Nucleo India ...

Q: What is a honeycomb diffuser on neon flex?

A honeycomb diffuser is a silicone face panel embossed or moulded with a repeating hexagonal (honeycomb) pattern. When the LED strip inside illuminates, the light passes through the hexagonal cells of the diffuser and projects a textured, patterned glow rather than the smooth uniform emission of a standard flat diffuser. The hexagonal pattern becomes visible on the silicone face itself, creating a decorative light source rather than a purely functional one. The effect is a warm, organic texture that adds visual interest to the cove, wall, or surface the neon flex is installed on.

Q: Can the honeycomb neon flex be used outdoors?

Yes. The honeycomb silicone profile is inherently weatherproof — the silicone body and patterned diffuser face are UV-resistant and waterproof with appropriate end caps and connections. It is suitable for exterior feature walls, outdoor bar fronts, landscape accent features, and building facades where the decorative honeycomb effect needs to be visible outdoors.

When the Light Itself Is the Detail

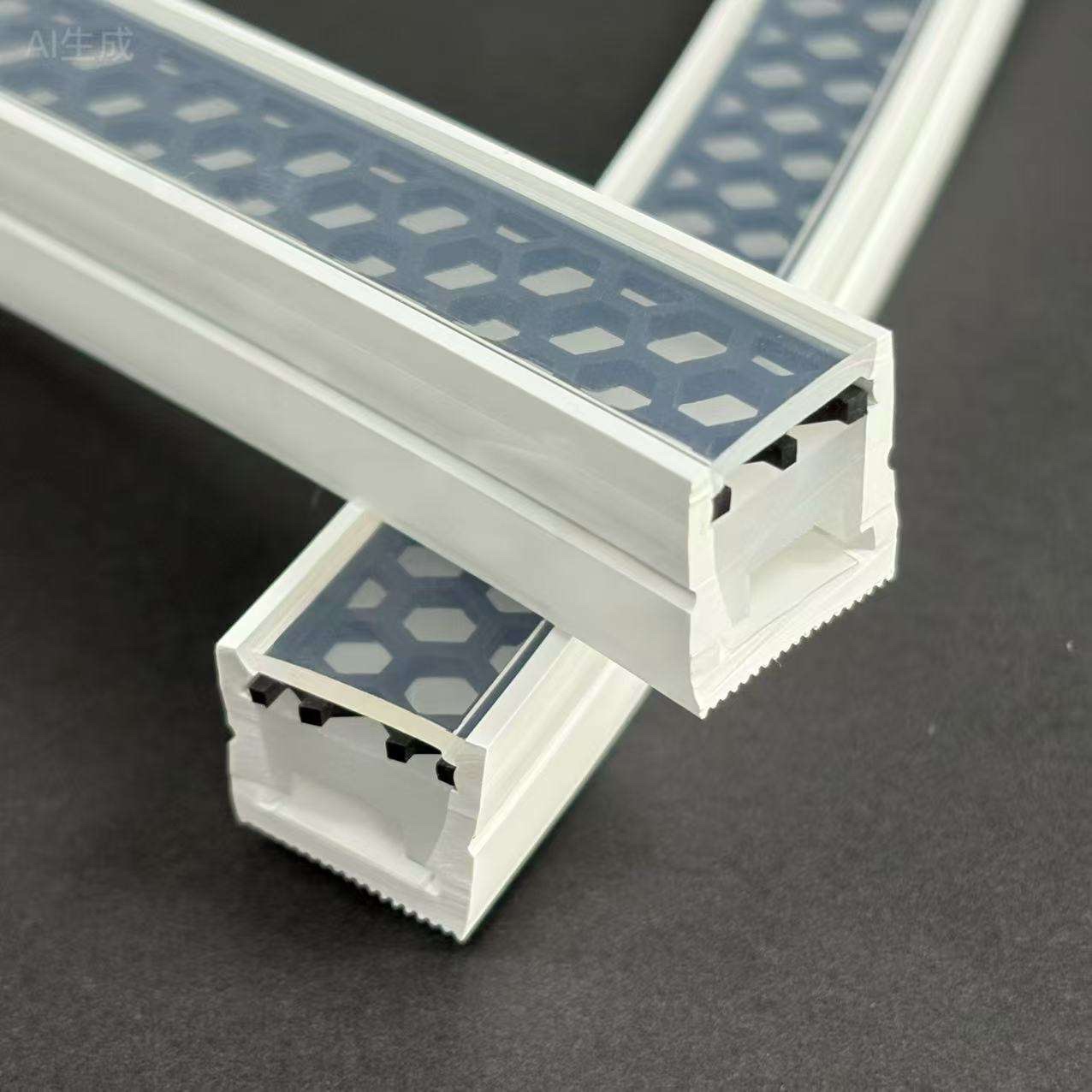

Most neon flex profiles are designed to disappear — to produce a smooth, seamless glow while the silicone body stays visually neutral. The 16×16mm Honeycomb variant does the opposite. The face of the silicone profile is moulded with a repeating hexagonal honeycomb pattern that becomes visible and luminous when the LED strip inside is powered on. Each hexagonal cell glows individually, creating a textured, layered light effect that makes the neon flex itself a design statement rather than just a light source.

This is an empty profile — supplied as a bare silicone extrusion without an LED strip. You choose and insert the LED strip that suits your project: single colour, tunable white, RGB, or RGBWW. In all other respects — body dimensions, installation method, Top Bending flexibility, and weatherproofing — the honeycomb profile is identical to the standard 16×16mm. Only the diffuser face is different, and that difference changes the character of the light completely.

⬡

The Honeycomb Effect — How It Works

The silicone body is the same transparent or lightly frosted material as any neon flex profile. The difference is the face panel — the diffuser surface is moulded with hexagonal cells rather than left flat. When the LED strip inside glows, the light fills each hexagonal cell and makes its edges visible. The face of the neon flex appears as a grid of glowing hexagons rather than a continuous bar of light. The character of the light is set by whichever LED strip you insert — the honeycomb diffuser amplifies it with texture. The pattern is on the neon flex itself — not a projection onto the surrounding surface.

Standard vs Honeycomb — Spot the Difference

Standard 16×16mm

Smooth flat diffuser. Produces a continuous, uniform glow. The silicone face appears as a single bar of light with no visible pattern. Ideal for seamless architectural cove lighting where the light source should be invisible.

Honeycomb 16×16mm

Hexagonal honeycomb diffuser. Each cell glows individually, creating a textured pattern on the face of the neon flex. The light source is a visible, decorative element. Ideal when the neon flex itself is part of the design.

Profile Specifications

16×16

Profile Size (mm)

Top

Bending Type

IP65

Ingress Protection

100 m

Roll Length

Empty

Strip Not Included

⬡

Honeycomb Diffuser

✦

When to Specify Honeycomb over Standard

If the neon flex is concealed in a cove and only the wash of light on the wall or ceiling is visible, use the standard smooth profile — the diffuser pattern won't be seen. If the neon flex is visible to the occupant — surface-mounted on a feature wall, used as a bar counter edge, exposed in a retail display, or applied to an architectural feature — choose the honeycomb. The hexagonal pattern adds a layer of visual texture that the standard profile cannot. The effect is particularly strong at close viewing distances where individual cells are clearly resolved.

Key Features

⬡

Honeycomb Diffuser Face

Hexagonal pattern moulded into the silicone face panel. Each cell glows individually when powered — the texture is inherent to the profile, not a cover or accessory.

↕

Top Bending

Flexes up and down along its length — follows ceiling coves, curved wall reveals, and arched surfaces. Installs exactly like any standard 16×16mm neon flex.

🌧

Weatherproof Silicone

UV-resistant silicone body rated IP65 with correct end caps. Suitable for exterior feature walls, outdoor bar fronts, and landscape feature lighting.

🎨

Any LED Strip Inside

Single-colour, tunable white, RGB, and RGBWW LED strips are all compatible. The empty channel accepts any strip that fits — the honeycomb diffuser works beautifully with all of them.

📦

100m Roll

Supplied in 100-metre rolls as an empty silicone extrusion. Cut to your required length on site and insert the LED strip of your choice.

✂

Cuttable to Length

The silicone body can be cut to any required length on site — trim to size, insert the strip, and seal the ends with end caps.

Applications

🍸

Bar Counter Edges

Honeycomb glow along bar tops and counter edges — texture adds warmth at close range

🧱

Feature Walls

Surface-mounted on feature wall panels where the neon flex is a visible design element

🏨

Hospitality Interiors

Hotels, restaurants, and lounges where textured light adds character to ambient lighting

🛍️

Retail Display

Product shelves and display plinths where the honeycomb texture draws attention

🎭

Entertainment Spaces

Clubs, event venues, and entertainment zones — pairs with RGB for colour-shifting honeycomb

🏗️

Exterior Facades

Surface-mounted on building facades where the texture remains visible at night

🪜

Staircase Accents

Along stair risers or nosing where the honeycomb pattern is seen at close distance

🖼️

Artwork & Signage

Framing artwork, mirror edges, and illuminated signage panels with decorative texture

Frequently Asked Questions

What is a honeycomb diffuser on neon flex?

A honeycomb diffuser is a silicone face panel moulded with a repeating hexagonal (honeycomb) pattern. When the LED strip inside illuminates, the light passes through the hexagonal cells and makes each one glow individually — projecting a textured, patterned effect rather than the smooth uniform emission of a standard flat diffuser. The pattern is visible on the face of the neon flex itself, creating a decorative light source rather than a purely functional one.

What is the difference between honeycomb and standard 16×16mm neon flex?

The body size, installation method, LED strip compatibility, and electrical characteristics are identical. The only difference is the diffuser face. A standard 16×16mm profile has a smooth, flat diffuser that produces a continuous, uniform glow — ideal for concealed cove lighting where the source should be invisible. The honeycomb variant has a hexagonal-patterned diffuser — each cell glows individually and the texture is visible on the neon flex face. Choose standard for seamless concealed cove lighting; choose honeycomb when the neon flex itself is part of the visible design.

Does the honeycomb pattern project onto the wall or ceiling?

No. The honeycomb pattern is visible on the face of the neon flex profile itself — not projected onto surrounding surfaces. The light that washes onto the wall or ceiling behind the neon flex remains a smooth, diffused glow. If the neon flex is concealed inside a deep cove and the face is not directly visible, the honeycomb effect will not be seen. The profile should be installed where the face is visible to the occupant for the textured effect to be appreciated.

Which LED strips work best with the honeycomb profile?

Any LED strip that fits the 16×16mm inner channel can be used — single colour, tunable white, RGB, or RGBWW. The honeycomb diffuser works with all of them. RGB and RGBWW strips are particularly striking because as the colour changes, each hexagonal cell shifts colour simultaneously, making the entire face a dynamic, vivid feature. Warm white strips create a rich, textured honeycomb glow; cool white strips produce a higher-contrast, more graphic cell pattern. The choice of strip is entirely yours — the profile is an empty channel.

Can the honeycomb neon flex be used outdoors?

Yes. The silicone body and honeycomb diffuser face are UV-resistant and weatherproof. With appropriate end caps and waterproof connections, the profile is suitable for exterior feature walls, outdoor bar fronts, garden feature lighting, and building facades exposed to rain. The honeycomb texture is especially striking on exterior surfaces at night when the face is visible from close or medium viewing distances.

Is installation the same as standard neon flex?

Yes. The honeycomb profile installs exactly like any 16×16mm silicone neon flex — mount in a channel, groove, or surface-mount track; insert the LED strip of your choice; seal the ends with end caps; connect to the appropriate driver for your strip. The Top Bending flexibility means it follows ceiling coves and curved wall reveals with no special tooling. The honeycomb face simply faces outward toward the viewer.
