Every Star In The Ceiling,
One Continuous Strand.

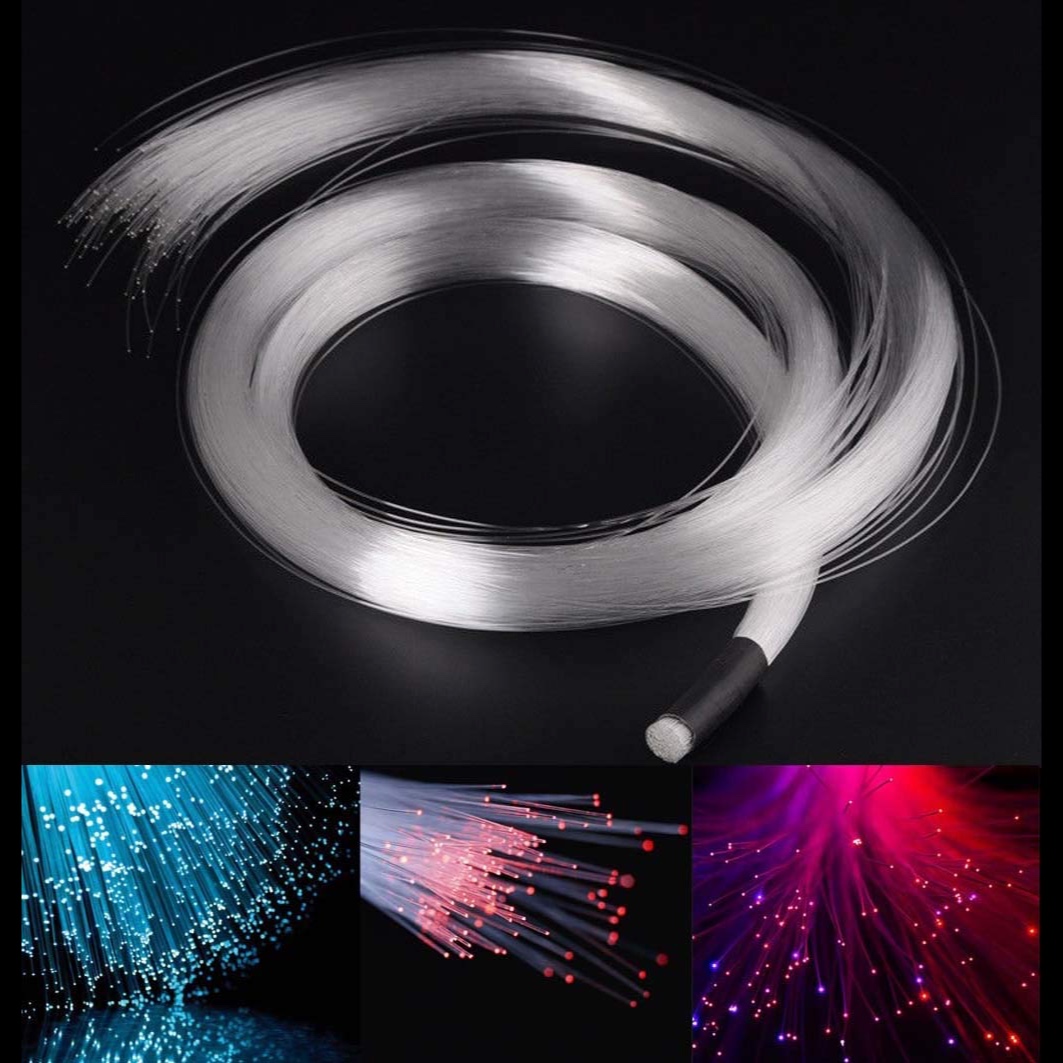

Bare PMMA end glow fiber optic cable carries light silently along its length and releases it only at the cut tip — the base material behind every star ceiling, showcase point and signage dot Nucleo builds.
PMMA end glow fiber optic cable has no electronics of its own — it is simply a highly polished acrylic strand that channels LED light from a remote illuminator to a single point. Because the light source sits outside the ceiling or panel entirely, there is no heat, no wiring and no live component anywhere near the finished surface. Nucleo's NL and CK series supply the raw fiber in seven diameters, from a fine 0.5mm strand for dense starfields down to a bold 3mm strand for individual accent points, in continuous rolls that run straight from illuminator to ceiling without a single joint.
Smaller strands scatter into hundreds of fine points; larger strands hold a single bright accent. All seven diameters run on the same illuminator platform.
0.5mm
NL-50 / CK-20
0.75mm
NL-75 / CK-30
1mm
NL-100 / CK-40
1.5mm
NL-150 / CK-60
2mm
NL-200 / CK-80
2.5mm
NL-250 / CK-100
3mm
NL-300 / CK-120
A simple product with very few variables — which is exactly why it has remained the base material for fiber optic point lighting for decades.
High-Clarity PMMA Core
Optical-grade acrylic transmits light over long runs with minimal loss, keeping the end point bright even on longer strand lengths.
Seven Diameters
0.5mm through 3mm covers everything from a dense starfield of fine points to bold individual accents from the same product family.
Long Continuous Rolls
Up to 6000m per roll at 0.5mm, scaling down to 150m at 3mm — enough to run most ceilings without a mid-length join.
True Point-Source Glow
Light exits only at the cut tip, producing a crisp, star-like point rather than a glowing line — the defining trait of end glow fiber.
NL Spool & CK Boxed Packing
Two packaging formats of the same PMMA fiber, so installers can choose whichever handles better for their site and volume.
Zero Electrical Load at the Point
Since the strand itself carries no current, thousands of ceiling points can be lit from a single remote illuminator with no wiring at each point.
Works With Any Nucleo Illuminator
Pairs directly with the Nucleo NLE fiber light engine range — match strand diameter to illuminator aperture and strand capacity at order stage.
Stocked & Dispatched from Mumbai
Standard roll lengths ship within 24–48 hours; bulk project quantities are coordinated against your installation timeline.
| Model | Diameter | Length / Roll | Material | PVC Sheath | Colour |
|---|---|---|---|---|---|
| NL-50 / CK-20 | 0.5mm | 6000m | PMMA | No | Transparent |
| NL-75 / CK-30 | 0.75mm | 2700m | PMMA | No | Transparent |
| NL-100 / CK-40 | 1mm | 1500m | PMMA | No | Transparent |
| NL-150 / CK-60 | 1.5mm | 700m | PMMA | No | Transparent |
| NL-200 / CK-80 | 2mm | 350m (CK: 250m) | PMMA | No | Transparent |
| NL-250 / CK-100 | 2.5mm | 250m | PMMA | No | Transparent |
| NL-300 / CK-120 | 3mm | 150m | PMMA | No | Transparent |
Any dry, indoor surface where a field of individual light points is needed without running wire to each point.
Star Ceilings
The classic application — hundreds of fine 0.5mm–1mm points threaded through a false ceiling for a night-sky effect in bedrooms and home theatres.
Hospitality Feature Ceilings
Lobbies, banquet halls and premium suites use larger-diameter points as sparse architectural accents rather than dense starfields.
Museum & Retail Display Points
Individual points highlight objects in display cases without introducing heat or wiring near sensitive exhibits or merchandise.
Signage & Backlit Lettering
Fiber tips threaded through channel-cut lettering produce clean, dot-matrix illumination without visible wiring.
Furniture & Joinery Inlay
Fine strands set into wardrobe fronts, bar counters and joinery details create discreet points of light within the material itself.
Stage & Exhibition Sets
Lightweight and heat-free, fiber points are threaded into backdrops and set pieces where fixtures would be impractical.
Automotive Headliners
Fine-diameter strands routed through vehicle roof linings recreate a starfield effect for custom and premium car interiors.
Religious & Cultural Spaces
Domes and ceremonial ceilings use dense point fields to reproduce a constellation effect appropriate to the setting.
Enquire About PMMA End Glow Fiber Optic Cable
Our team helps you match strand diameter, roll length and point count to a compatible illuminator for your project.
