▲▼ NLP-5015 TwoWay Wall LED Profile
Dual-Directional Up & Down Illumination — Transform Walls into Architectural Light Features
One Profile. Two Directions. Infinite Drama.
Nucleo's NLP-5015 TwoWay Wall LED Profile is a premium dual-directional aluminium extrusion that houses two independent LED strips and projects light simultaneously upward and downward along the wall surface. The result is a sophisticated architectural effect — a balanced wash of light above and below that makes walls appear to float, corridors feel expansive, and interiors look unmistakably premium. Available pan-India for luxury residential, hospitality, retail, and commercial projects.
What is the NLP-5015 TwoWay Wall LED Profile?
The NLP-5015 is a surface-mounted aluminium LED wall profile with a unique dual-channel cross-section that accepts two separate LED strips — one directed upward, one directed downward. Unlike a standard single-direction profile, it delivers simultaneous up-wash and down-wash illumination from one slim, wall-mounted housing. The frosted PC diffuser cover ensures dot-free uniform output in both directions, while the anodised aluminium body provides superior heat dissipation and a premium finish that integrates cleanly with any wall surface.
How the NLP-5015 Illuminates
Washes Upward
Both strips independent
Washes Downward
Both LED strips are independently wired — dim, colour-tune, or switch each direction separately for full creative control.
TwoWay Profile vs Single Direction Wall Profile
NLP-5015 TwoWay Profile
What sets it apart: Dual-channel housing with two LED strips delivering simultaneous up and down illumination from a single wall-mounted profile.
Key Advantages:
- Simultaneous up & down light projection
- Two independent LED strip channels
- Creates floating wall / architectural wash effect
- Independently controllable — dim each direction separately
- Frosted PC diffuser — dot-free output both ways
- Premium anodised aluminium — Black or White finish
- Superior heat dissipation — extends LED life
- Integrates into drywall, plaster, or masonry
Standard Single Direction Profile
Common limitations: Conventional wall profiles project light in only one direction — either up or down — requiring two separate profiles to achieve bidirectional effects.
Common Limitations:
- One direction only — up or down, not both
- Single LED strip channel
- Two profiles required for up-down effect
- Double the installation time and cost
- Two mounting lines visible on wall
- Alignment between two profiles critical
- Limited architectural drama
- No floating wall effect from a single profile
Lighting Effects You Can Create
Floating Wall Effect
Light washes up and down simultaneously — the wall appears to float, detached from ceiling and floor
Vertical Wash
Even distribution of light across the wall height — creates depth, texture, and drama on any wall surface

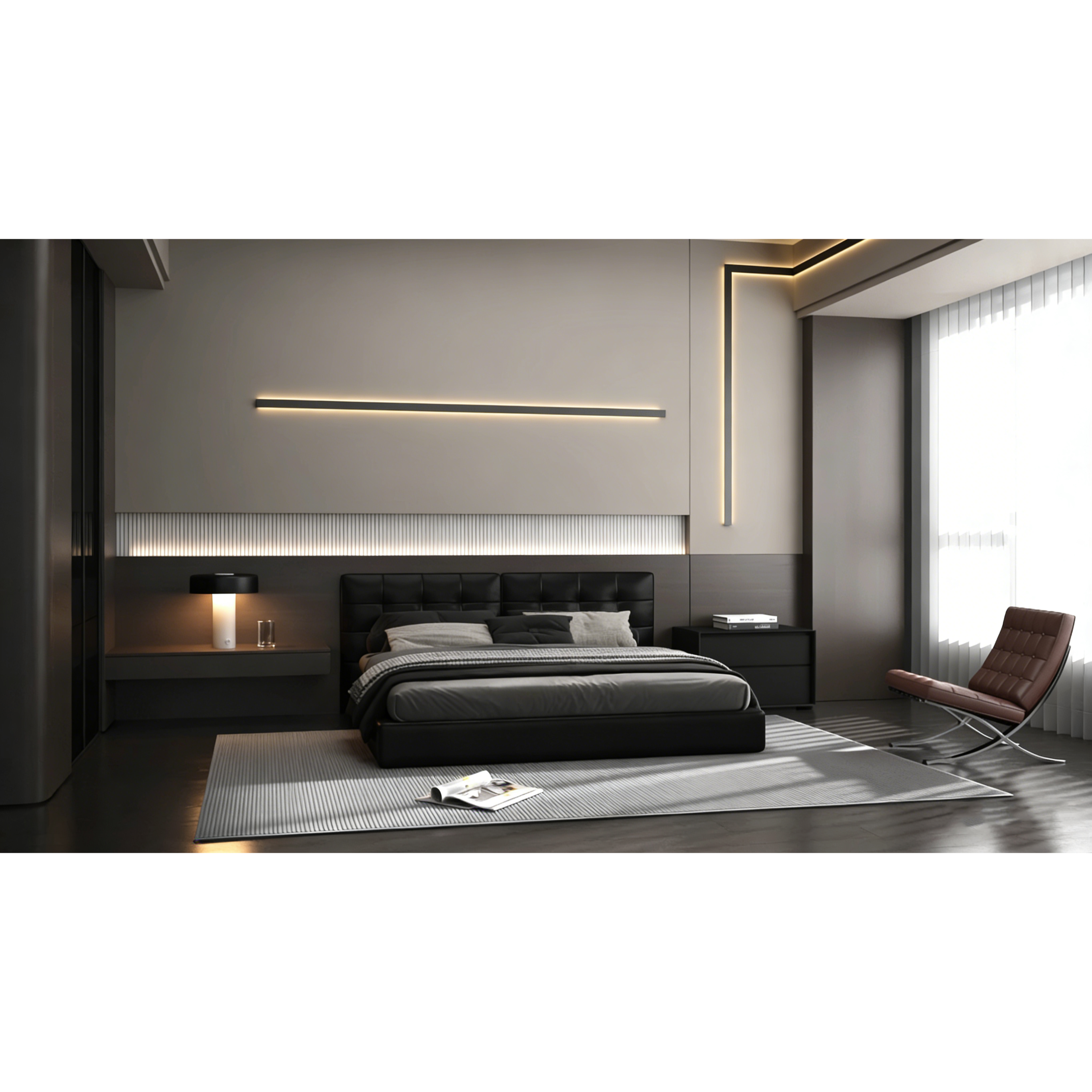

Headboard Halo
Mounted behind a headboard panel — uplights the wall above and downlights the mattress area with soft ambient glow
Corridor Drama
Installed along corridor walls — dual-direction wash makes narrow spaces feel wider, taller, and more premium
Accent Wall Framing
Frame a feature wall or artwork panel — light frames the top and bottom edge simultaneously for a gallery-quality presentation
Column & Pillar Lighting
Wrap columns and architectural pillars — the dual wash emphasises verticality and adds sculptural drama to structural elements
Why Choose the NLP-5015 TwoWay Wall LED Profile?
- Halves Your Installation Cost: One profile replaces two single-direction profiles — saving on material, labour, and installation time
- Architectural Drama: The floating wall effect is one of the most impactful visual techniques in luxury interior design — achievable with a single product
- Independent Control: Two strip channels mean upper and lower light can be separately dimmed, colour-tuned, or programmed — total creative flexibility
- Seamless Appearance: Single slim profile on the wall looks cleaner and more intentional than two separate mounted profiles
- Premium Heat Dissipation: Die-cast aluminium body conducts heat away from both LED strips efficiently — ensuring consistent performance and long lifespan
- Dot-Free Output: Frosted PC diffuser cover ensures smooth, uniform output from both channels — no LED dot effect visible in either direction
- Versatile Finishes: Available in anodised Black and White — integrates with any interior colour palette
- Architect Favourite: Used by interior designers and architects across India's luxury residential, hospitality, and commercial sectors
Key Features & Specifications
▲▼ Dual-Direction Channels
Two independent LED strip channels built into one profile — simultaneous up-light and down-light from a single wall mounting
🏗️ Anodised Aluminium Body
High-grade anodised aluminium extrusion with superior heat dissipation — available in Black and White finish
🔆 Frosted PC Diffuser
Dot-free, uniform light output from both directions — no visible LED hot-spots even at close viewing distances
⚙️ High-Tension Clip Mounting
Mounts securely to any wall surface — drywall, masonry, tile, MDF, or stone — using high-tension spring clips
📏 Strip Compatibility
Each channel accepts 8mm–12mm LED strips — compatible with COB, 2835, 5050, 5630 formats in both channels
✂️ Custom Lengths
Available in 1m, 2m, and custom cut lengths — order exactly what your project requires for zero waste
Technical Specifications
| Specification | Details |
|---|---|
| Model | NLP-5015 TwoWay Wall LED Profile |
| Profile Material | Anodised Aluminium |
| Profile Dimensions | 50mm (W) × 15mm (H) approx. |
| Light Direction | Dual — Upward & Downward simultaneously |
| LED Strip Channels | 2 independent channels (one per direction) |
| Strip Compatibility (each channel) | 8mm–12mm wide LED strips (COB, 2835, 5050, 5630) |
| Diffuser Type | Frosted PC (Polycarbonate) Cover |
| Light Output | Dot-free, uniform — both up and down directions |
| Finish Options | Anodised Black / Anodised White (custom available) |
| Installation Method | Surface-mounted via high-tension clips |
| Wall Compatibility | Drywall, masonry, MDF, stone, tile, timber |
| Heat Dissipation | Excellent — aluminium extrusion body |
| Available Lengths | 1m, 2m, custom cut |
| Independent Control | Yes — upper & lower channels wired separately |
| Brand / Manufacturer | Nucleo (Nucleo360) — Pan India |
Applications
🏠 Luxury Residential
- Master bedroom headboard walls
- Living room feature walls
- Home corridor & hallway walls
- Study & library wall panels
- Dining room accent walls
- Walk-in wardrobe interiors
- Staircase wall lighting
🏨 Hospitality
- Hotel room headboard walls
- Hotel corridor wall lighting
- Lobby feature wall accents
- Restaurant booth wall panels
- Spa treatment room walls
- Lounge & bar wall accents
- Reception area columns
🏢 Commercial & Office
- Corporate lobby feature walls
- Boardroom & conference walls
- Premium office corridor walls
- Branded feature wall lighting
- Column & pillar accent lighting
- Lift lobby wall lighting
- Co-working accent wall panels
🛍️ Retail & Display
- Luxury retail wall displays
- Jewellery boutique wall accents
- Fashion store feature walls
- Showroom wall panel lighting
- Museum exhibit wall framing
- Gallery partition lighting
- Pop-up display wall lighting
Installation Guide
Standard Wall Installation
- Planning & Layout: Mark the exact horizontal line on the wall where the profile will be mounted — use a spirit level to ensure it is perfectly straight across the full length
- Mounting Clip Placement: Mark clip positions at 400–500mm intervals along the marked line — drill and plug wall at each clip location
- Clip Fixing: Screw high-tension mounting clips firmly to wall at all marked positions — ensure all clips are aligned on the same horizontal plane
- Strip Insertion: Insert the upper LED strip into the upper channel of the profile and the lower LED strip into the lower channel — feed from one end and guide through gently
- Profile Mounting: Press the loaded profile onto the mounted clips — the spring clips engage and hold the profile firmly against the wall surface
- Wiring: Route upper and lower strip wiring separately to their respective drivers or dimmer circuits — maintain independence between channels for full creative control
- Driver Placement: Install LED drivers in a wall cavity, ceiling space, or accessible service area — keep driver-to-strip wiring within recommended maximum run lengths
- End Cap Fitting: Fit end caps at both ends of the profile to complete the installation and protect strip terminals from dust
- Testing: Power each channel on independently — verify even, dot-free output in both upward and downward directions, and test dimming function if applicable
Integrated / Recessed Wall Installation (Premium Finish)
- Wall Chase Preparation: Cut a horizontal chase into the plasterboard or masonry at the profile installation height — sized to accept the NLP-5015 profile depth
- Profile Setting: Set the NLP-5015 into the wall chase flush with the finished wall surface — secure with clips or construction adhesive
- Strip Wiring: Route wiring for both channels through the wall chase to junction boxes or driver locations inside the wall cavity
- Strip Loading: Insert both LED strips into their respective channels before closing the wall cavity
- Plaster Finishing: Skim-plaster the wall flush around the profile — leaving only the frosted diffuser face exposed, creating a seamless wall-profile integration
- Painting: Paint the wall and the profile body to match — only the illuminated diffuser apertures remain visible above and below
- Testing: Power on both channels and inspect the final up-down wash effect on the finished wall surface
Design Philosophy — Light That Defines Walls
The NLP-5015 is born from a single design insight: walls are not just surfaces — they are the primary canvas of an interior. The way light falls on a wall determines whether a space feels flat or dramatic, ordinary or premium, enclosed or expansive.
Dual-directional wall lighting achieves effects that no other single fixture can:
- Visual height: Upward-washing light draws the eye upward — making rooms feel taller without changing ceiling height
- Ground anchoring: Downward light adds warmth and groundedness — the balance between up and down creates visual harmony
- Floating surfaces: When both directions illuminate simultaneously, the wall between them appears to detach — a premium signature look
- Texture revelation: Grazing light across textured walls — stone, wood, fabric — reveals material depth invisible under flat overhead lighting
- Scene flexibility: With independent channel control, one profile delivers multiple moods — from full bilateral drama to subtle single-direction ambience
Frequently Asked Questions
What is the NLP-5015 TwoWay Wall LED Profile?
What is the floating wall effect and how does the NLP-5015 create it?
Can the two strips be controlled independently?
Can the NLP-5015 be recessed into the wall for a seamless finish?
What LED strips are compatible with the NLP-5015?
Does Nucleo supply the NLP-5015 across India?
